High Voltage Core Cable

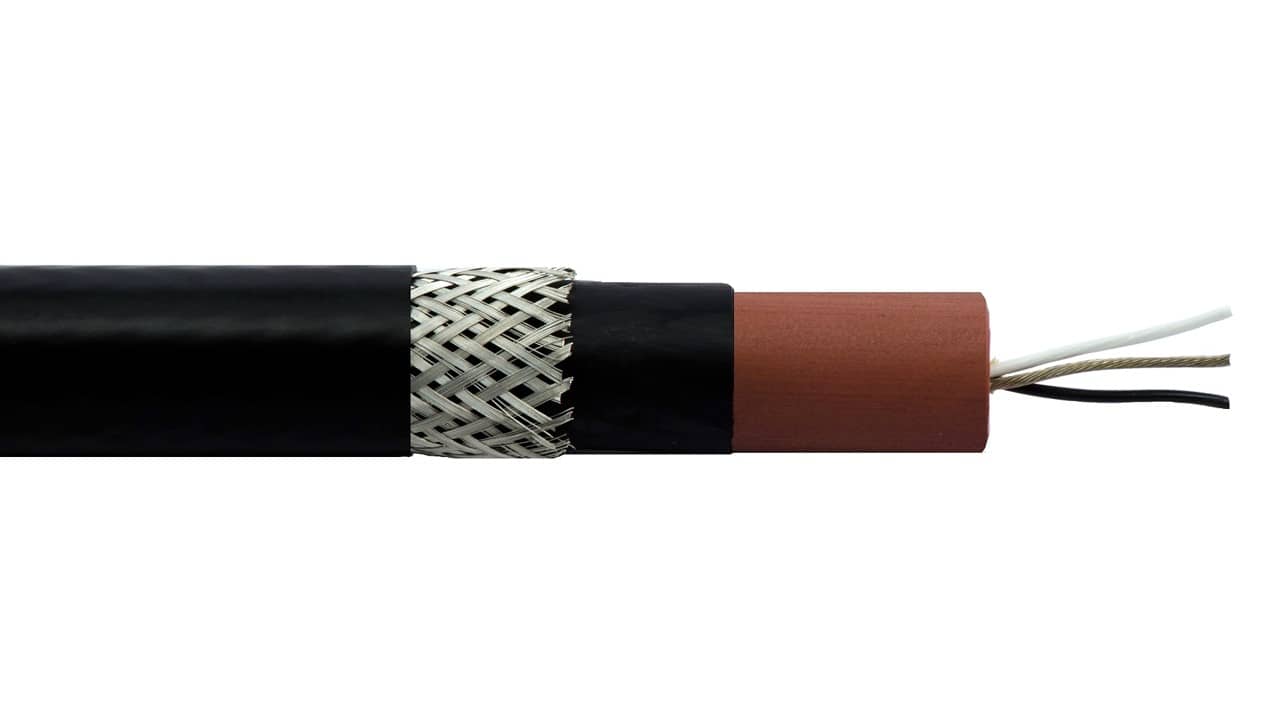

EPR X-Ray High Voltage Cable – up to 320kVDC

Essex X-Ray are an exclusive supplier of the world’s highest specification EPR X-Ray cable. HV Cables rated from 75kVDC up to 320kVDC are available from stock. Renowned for their excellent high voltage characteristics, our single core, 3 core, 4 core & 5 core EPR X-Ray cables have a flexible construction and feature multiple semi conductive layers, braided shielding and robust PVC jackets.

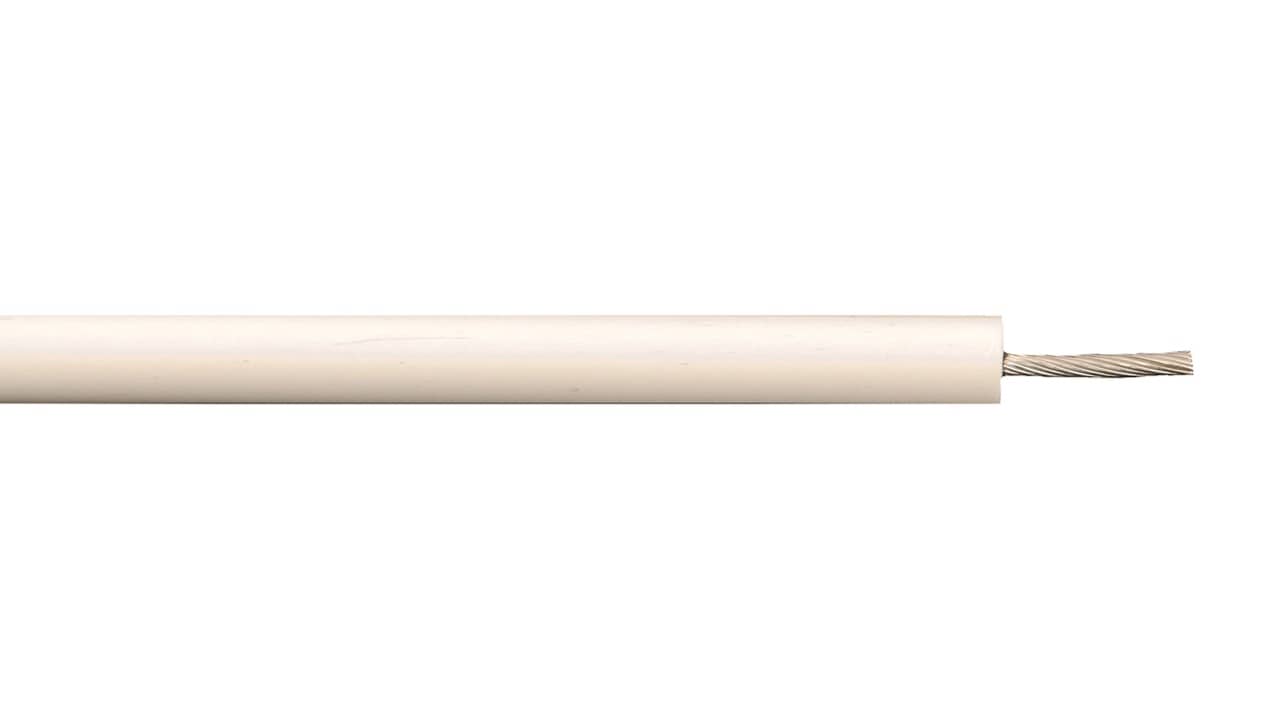

Unshielded High Voltage Cable – up to 150kVDC

Essex X-Ray offer a wide range of unshielded high voltage cables rated up to 150kVDC. Dielectric materials including silicone, FEP & Polyethylene are available, with many featuring a semi conductive layer to deliver low partial discharge and an AC rating. Cables carrying a maximum conductor temperature of up to 200°c are available where heat is a critical selection criteria.

Shielded High Voltage Cable – up to 300kVDC

Essex X-Ray offer a standard range of shielded high voltage cables rated up to 300kVDC, as well as bespoke options. Dielectric materials including silicone, FEP & Polyethylene are available, with many featuring a semi conductive layer to deliver low partial discharge and an AC rating. A selection of custom shielding and jacketing options are available to deliver mechanical protection, electrical return and an electro-magnetic screen to suit specific applications.

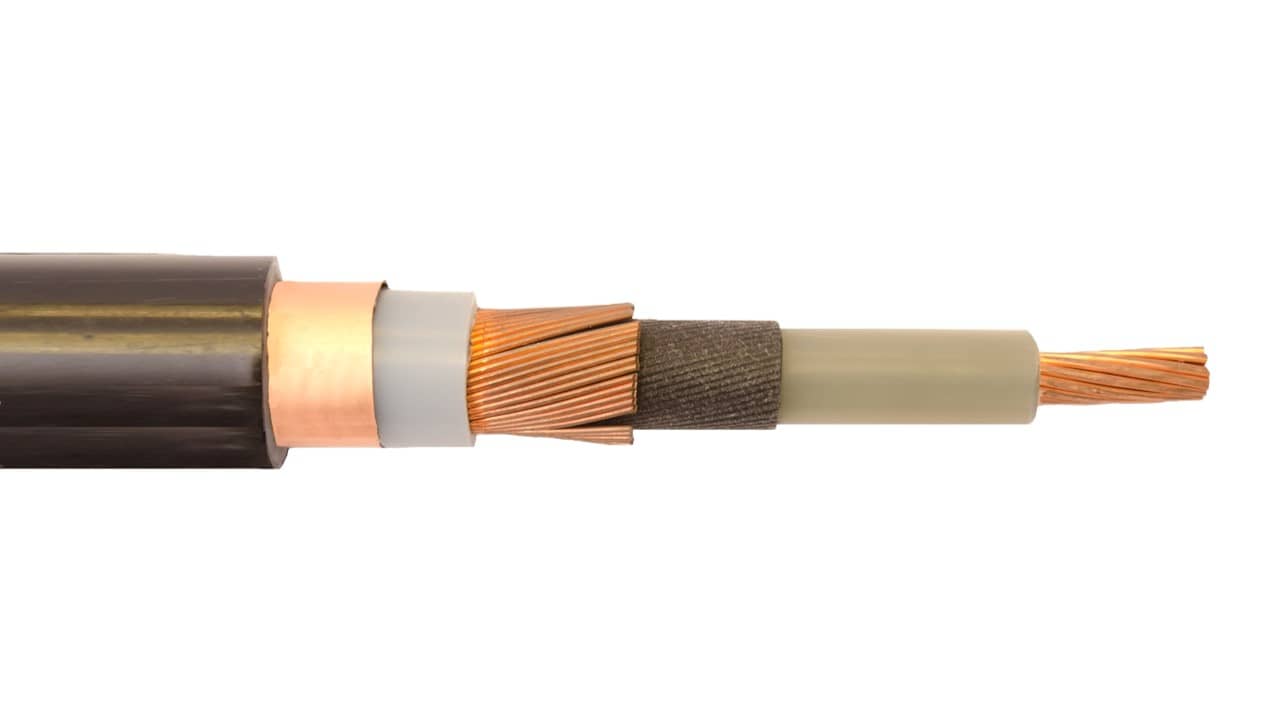

Custom High Voltage Cable – up to 1MVDC

Essex X-Ray offer an extensive range of multi-conductor, triaxial and pulsed high voltage cable rated up to 1MV for bespoke applications. Our specialist high voltage engineers have delivered projects for some of the world’s most respected scientific research organisations including DESY, CERN, ITER & Rutherford Appleton Laboratories. Essex X-Ray offers a complete service in the design and manufacture of custom high voltage cable requirements.
